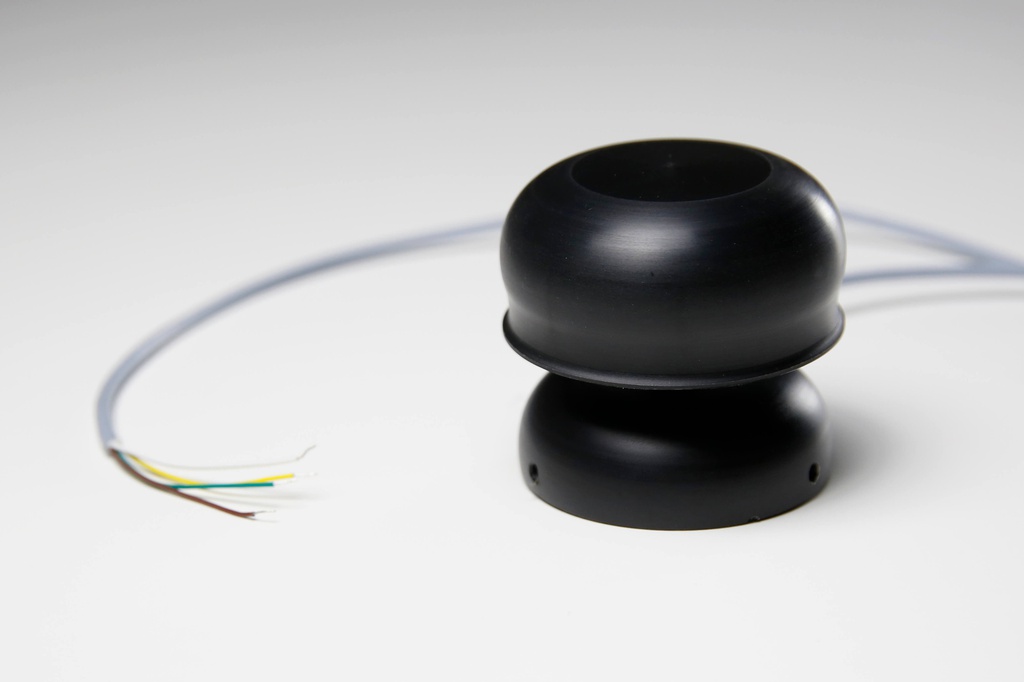

Ultra-Low-Power Ultrasonic wind meter.
Wind meter, a 45m/s IoT, Ultra-Low Power Ultrasonic Anemometer:
Ultra-Low-Power (RS485 NMEA 0183: 0,25 mA @5V, 1Hz / MODBUS : 1 mA @5V, 1Hz)
Ultra-Low-Power (UART): 0,15 mA @5V, 1Hz Small: 70x70 mm
Light: 130-240gr
The ULP represents an important technology breakthrough condensing an extensive R+D investment that brings us to a new generation of ultrasonic wind meters.
Both shape and firmware have been enhanced for an improved rain performance, being this point key for static applications such as weather stations.
Mechanical design has been revamped making the unit more robust and dependable.
We feel very proud to release a unit that requires under 0,25mA @1Hz (RS485), and 0,15mA @1Hz (UART)
(Further protocols under request).
NMEA 2000 output
The Ultra-Low-Power Ultrasonic wind meter can output an NMEA 2000 signal when using an NMEA Connect Plus NCP_W2000 model.
Certifications
![](/web/image/52111/3c.jpg)
Applications:
Agriculture: Precision Agriculture/ Spraying/ Fertilicers and Irrigation
Energy & Industry: Solar / Wind Power / Cranes /Elevators / Gas, oil & Industrial Plants
Infraestructures & construction: Tunnels, Roads & Bridges/ Buildings & Temporary Constructions
Marine: Fishing & Comercial/ Sailing, yacthing and watersports/ Marinas and Harbours
Scientific & Meteorology: Research/ Metereological monitoring/ Air Quality and environmental/ Smart Cities
Firefighing: Wildfire, urban firefighting
Ballistics: Long Range Shooting
Drones and aviation: Airports/ UAV
Outdoors
Add an NMEA Connect Plus :
NCP_ W2000 : Connects your Ultra-Low Power ULTRASONIC wind data to NMEA 2000 network. Allows the connection of 2 Bluetooth devices at the same time.
The package contains the following:
Ultrasonic ULP STD Wind Instrument plus 2 meters (6.5 ft) cable for connection*
Serial number reference on the side of the packaging.
A quick user guide on the back of the packaging and some more useful information for the customer.
M4 headless screw (x6)
M4 screw (x3)
*USB converter cables are available here.
Internal Reference Codes:
- The SKU/CMI product number for the ULP Standard 25m/s Wind Meter with RS485 (NMEA0183) / MODBUS protocol is CMI1014.
- The SKU/CMI product number for the ULP Standard 45m/s Wind Meter with RS485 (NMEA0183) / MODBUS protocol is CMI1017.
- The SKU/CMI product number for the ULP Standard 45m/s Wind Meter with UART/12c protocol is CMI1018.
- The SKU/CMI product number for the ULP Standard 45m/s Wind Meter with Analog 4-20mA protocol is CMI1034.
- The SKU/CMI product number for the ULP Standard 45m/s Wind Meter with SDI12 protocol is CMI1051.
Datasheet
(All protocols) Instruction Manual
MODBUS & RS485 Protocol Manual -
UART & I2C Protocol Manual -
SDI-12 Protocol Manual -
Analog 4-20 Protocol Manual -
Instruction Manual (Chinese)
ULP Configuration: click here
MODBUS Configuration: click here
